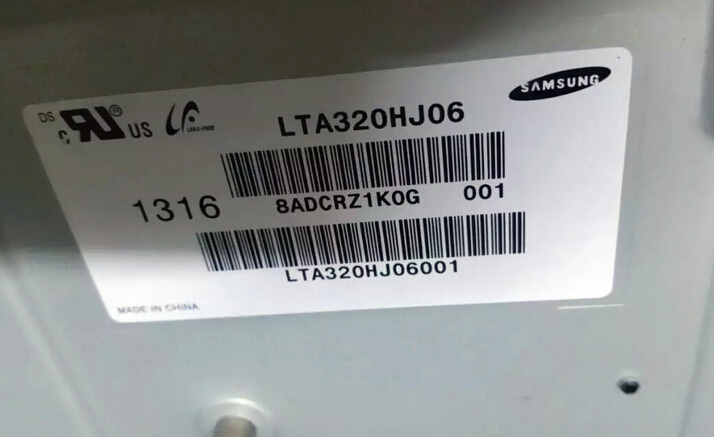

| Onderdeel nummer | LTA320HJ06-W |
| Merk | SAMSUNG |
| Maat | 32.0 |
| Sollicitatie | TV Sets |
| Oplossing | 1920×1080 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 5000:1 |
| Kleuren | 1.07B |
| Tegenlicht | WLED |
| Koppel | LVDS |
| fabrikant | SAMSUNG |
| scherm grootte | 32.0 inch |
| pixel nummer | 1920(RGB)×1080 (FHD) 69PPI |
| actief gebied (mm) | 698.4 × 392.85 (H×V) |
| bezel gebied (mm) | 705.4 × 400 (H×V) |
| luminantie | 350 cd/m² (Typ.) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| kleuren diepte | 1.07B 70% NTSC |
| massa | 5.00/5.5Kgs (Typ./Max.) |
| vernieuwingsfrequentie | 60Hz |
| signaal type | LVDS (2 ch, 10-bit) , 61 pins Connector |
| spanningsvoorziening | 12.0V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnaam | LTA320HJ06-W |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 726.2 × 422.9 × 27.9 (H×V×D) |
| behandeling | Antiglare (Haze 2%), Hard coating (2H) |
| contrast ratio | 5000 : 1 (Typ.) (TM) |
| antwoord | 8 (Typ.)(G to G) ms |
| werk modus | SPVA, Normally Black, Transmissive |
| tegenlicht | WLED , 35K hours |
| gebruikt voor | TV Sets |
| touch screen | Without |
| LTA320AN01-C | Samsung | 31.5 | 1366×768 |
| LTA320AN01-W | Samsung | 31.5 | 1366×768 |
| LTA320AN12 | Samsung | 31.5 | 1366×768 |
| LTA320AP16 | Samsung | 31.5 | 1366×768 |
| LTA320HA02 | Samsung | 31.5 | 1920×1080 |
| LTA320HA04 | Samsung | 31.5 | 1920×1080 |
| LTA320HN02-W | Samsung | 31.5 | 1920×1080 |
| LTA320HN03-W | Samsung | 31.5 | 1920×1080 |
| LTA320HN04-W | Samsung | 31.5 | 1920×1080 |
| LTA320WT-L16 | Samsung | 31.5 | 1366×768 |
