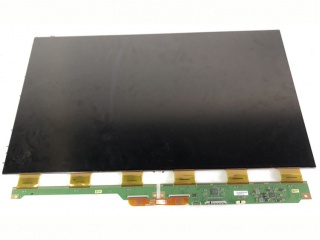

| Onderdeel nummer | LSM270HP09 |
| Merk | SAMSUNG |
| Maat | 27.0 |
| Sollicitatie | Desktop Monitor Gami |
| Oplossing | 1920×1080 |
| Samenstelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 3000:1 |
| Kleuren | 16.7M |
| Tegenlicht | No |
| Koppel | LVDS |
| fabrikant | SAMSUNG |
| scherm grootte | 27.0 inch |
| pixel nummer | 1920(RGB)×1080 (FHD) 81PPI |
| actief gebied (mm) | 597.888 × 336.312 (H×V) |
| bezel gebied (mm) | - |
| luminantie | 0 cd/m² |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| glas dikte | 0.40+0.40 mm |
| kleuren diepte | 16.7M 71% NTSC |
| massa | 650g (Max.) |
| vernieuwingsfrequentie | 165Hz |

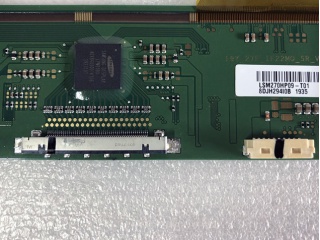

| signaal type | LVDS (4 ch, 8-bit) , 61 pins Connector |
| spanningsvoorziening | 12.0V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnaam | LSM270HP09 |
| scherm type | CELL , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 608.888 × 348.337 × 1.26 (H×V×D) |
| behandeling | Antiglare (Haze 25%) |
| contrast ratio | 3000 : 1 (Typ.) (TM) |
| antwoord | 21 (Typ.)(G to G) ms |
| werk modus | SPVA, Normally Black, Transmissive |
| doorlaatbaarheid | 4.67% (Typ.)(with Polarizer) |
| tegenlicht | No B/L |
| gebruikt voor | Desktop Monitor Gaming |
| touch screen | Without |
