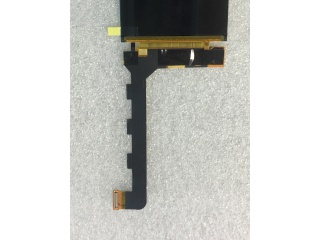

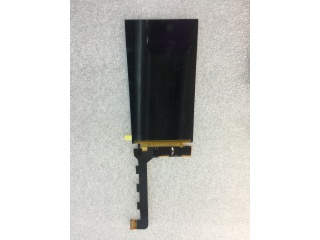

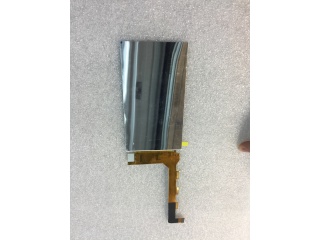

| Onderdeel nummer | LS050T1SX18 |
| Merk | Sharp |
| Maat | 5.0 |
| Sollicitatie | Mobile Phone |
| Oplossing | 1080×1920 |
| Samenstelling | CG-Silicon, LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleuren | 16.7M |
| Tegenlicht | 6S2P |
| Koppel | MIPI |
| paneel merk | Sharp |
| paneelmodel | LS050T1SX18 |
| paneel grootte | 5.0" |
| paneel type | CG-Silicon, LCM |
| oplossing | 1080(RGB)×1920, FHD, 445PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 61.641(W)×109.584(H) mm |
| omlijsting openen | - |
| omtrek grootte | 63.64(W)×116.224(H) ×1.16(D) mm |
| oppervlak | - |
| helderheid | 480 cd/m² (Typ.) |
| contrast ratio | 1500:1 (Typ.) (TM) |
| kijk hoek | 80/80/80/80 (Min.)(CR≥10) |
| weergavemodus | New Mode2, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 35 (Max.)(Tr+Td) |
| kleuren weergeven | 16.7M 95% NTSC |
| soort lamp | 6S2P WLED , Without Driver |
| frequentie | 60Hz |
| touch screen | PCAP |
| paneel gewicht | 14.0g (Typ.) |
| sollicitatie | Mobile Phone |
| signaal interface | MIPI (4 data lanes) , 40 pins Connector |
| ingangsspanning | 1.8/5.5/-5.5V (Typ.)(VDDIO/AVDD/AVEE) |
| omgeving | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| LQ050T1SX02 | SHARP | 5.0 | 1080×1920 |
| LQ050T5DG01 | SHARP | 5.0 | 400×240 |
| LS050T1SX01 | SHARP | 5.0 | 1080×1920 |
| LS050T1SX04 | SHARP | 5.0 | 1080×1920 |
| LS050T1SX06 | SHARP | 5.0 | 1080×1920 |
| LS050T1SX10 | SHARP | 5.0 | 1080×1920 |
| LS050T1SX12(K) | SHARP | 5.0 | 1080×1920 |
| LT050CA41000 | JDI | 5.0 | 800×480 |
| P50AD2 | E Ink | 5.0 | 320×234 |
| TM050QDH01 | Tianma | 5.0 | 640×480 |
