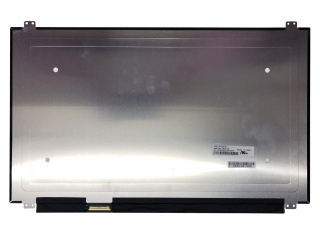

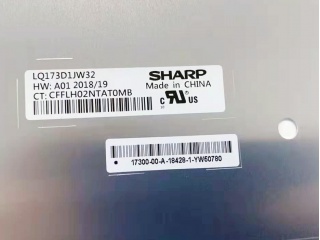

| Onderdeel nummer | LQ173D1JW32 |
| Merk | Sharp |
| Maat | 17.3 |
| Sollicitatie | Laptop |
| Oplossing | 3840×2160 |
| Samenstelling | Oxide TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | Sharp |
| paneelmodel | LQ173D1JW32 |
| paneel grootte | 17.3" |
| paneel type | Oxide TFT-LCD, LCM |
| oplossing | 3840(RGB)×2160, UHD, 255PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 382.12(W)×214.94(H) mm |
| omlijsting openen | - |
| omtrek grootte | 393.69(W)×252(H) ×4(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| kijk hoek | 88/88/88/88 (Typ.)(CR≥10) |
| weergavemodus | IPS, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 30 (Typ.)(Tr+Td) |
| kleuren weergeven | 16.7M 100% Adobe RGB |
| soort lamp | WLED , 12K hours , With LED Driver |
| frequentie | 60Hz |
| touch screen | Without |
| vorm stijl | Flat (PCBA Flat, T3.4~4.0mm) |
| sollicitatie | Laptop |
| signaal interface | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
