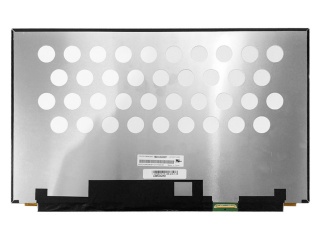

| Onderdeel nummer | LQ156D1JX36x |
| Merk | Sharp |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 3840×2160 |
| Samenstelling | Oxide TFT-LCD , LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | Sharp |
| diagonale maat | 15.6 inch |
| pixel formaat | 3840(RGB)×2160 [UHD] 282PPI |
| actief gebied | 345.6(H)×194.4(V) mm |
| bezel gebied | - |
| luminantie | 300 cd/m² (Typ.) |
| richting bekijken | Symmetry |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| ondersteunende kleur | 16.7M 100% sRGB |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| frame rate | 60Hz |
| interface-type | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| model | LQ156D1JX36x (SHP1480) |
| type | Oxide TFT-LCD , LCM |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | 351.9(H)×217.2(V) ×2.75(D) mm |
| behandeling | Glare (Haze 0%), Hard coating (3H) |
| contrast ratio | 1500:1 (Typ.) (TM) |
| reactietijd | 33 (Typ.)(Tr+Td) |
| bedrijfsmodus | IPS, Normally Black, Transmissive |
| lichtbron | WLED , 15K hours , With LED Driver |
| ontworpen voor | Laptop |
| aanraakpaneel | Without |
