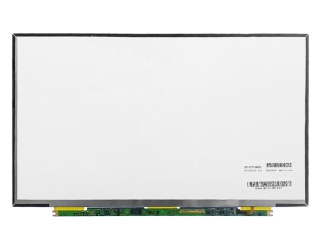

| Onderdeel nummer | LQ133T1JW23 |
| Merk | Sharp |
| Maat | 13.3 |
| Sollicitatie | Laptop |
| Oplossing | 2560×1440 |
| Samenstelling | Oxide TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | Sharp |
| model | LQ133T1JW23 (SHP1412) |
| diagonale maat | 13.3 inch |
| type | Oxide TFT-LCD, LCM |
| pixel formaat | 2560(RGB)×1440 [Quad-HD] 221PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 293.76(H)×165.24(V) mm |
| omtrek afm. | 304.98(H)×187.9(V) ×2.6(D) mm |
| bezel gebied | - |
| behandeling | Antiglare (Haze 42%) |
| luminantie | 350 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Td) |
| kijk hoek | 80/80/80/80 (Typ.)(CR≥10) |
| bedrijfsmodus | VA, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 100% sRGB |
| lichtbron | WLED , 10K hours , With LED Driver |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| ontworpen voor | Laptop |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| interface-type | eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
