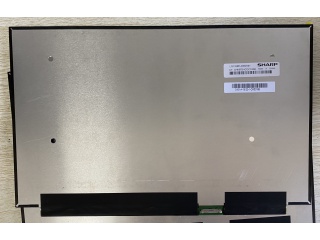

| Onderdeel nummer | LQ133M1JX36 |
| Merk | Sharp |
| Maat | 13.3 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | Oxide TFT-LCD, LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | Sharp |
| paneelmodel | LQ133M1JX36 (SHP14A9) |
| paneel grootte | 13.3" |
| paneel type | Oxide TFT-LCD, LCM |
| oplossing | 1920(RGB)×1080, FHD, 166PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 293.76(W)×165.24(H) mm |
| omlijsting openen | - |
| omtrek grootte | 298.76(W)×186.04(H) ×2.1(D) mm |
| oppervlak | Glare (Haze 0%), Hard coating |
| helderheid | 470 cd/m² (Typ.) |
| contrast ratio | 1500:1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| weergavemodus | IPS, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 30 (Typ.)(Tr+Td) |
| kleuren weergeven | 16.7M 100% sRGB |
| soort lamp | WLED , 15K hours , With LED Driver |
| frequentie | 60Hz |
| touch screen | Without |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| sollicitatie | Laptop |
| signaal interface | eDP (2 Lanes) , eDP1.4 , 2.16G/lane , 30 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
| CLAA133UA01 | CPT | 13.3 | 1600×900 |
| LP133WD2-SLB1 | LG Display | 13.3 | 1600×900 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LQ133K1LA4A | SHARP | 13.3 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LQ133T1JW01 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
