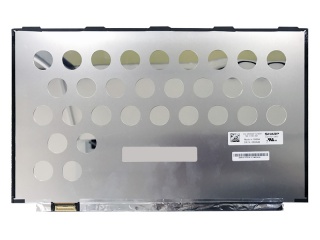

| Onderdeel nummer | LQ133M1JW23 |
| Merk | Sharp |
| Maat | 13.3 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | LCM , Oxide TFT-LC |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| fabrikant | Sharp |
| modelnaam | LQ133M1JW23 (SHP1460) |
| scherm grootte | 13.3 inch |
| scherm type | LCM , Oxide TFT-LCD |
| pixel nummer | 1920(RGB)×1080 (FHD) 166PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 293.76 × 165.24 (H×V) |
| overzicht (mm) | 299.46 × 185.4 × 2.35 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 400 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| antwoord | 25 (Typ.)(Tr+Td) ms |
| goed zicht op | Symmetry |
| werk modus | IPS, Normally Black, Transmissive |
| kleuren diepte | 16.7M 100% sRGB |
| tegenlicht | WLED , 15K hours , With LED Driver |
| omlijnde vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruikt voor | Laptop |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| HN133WU1-100 | BOE | 13.3 | 1920×1080 |
| LP133X7-P2IB | LG Display | 13.3 | 1024×768 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LQ133K1LA4A | SHARP | 13.3 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LQ133T1JW01 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
| N133BGE-L31 | Innolux | 13.3 | 1366×768 |
