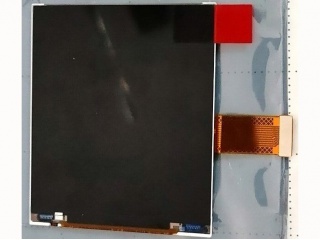

| Onderdeel nummer | LPM035M407B |
| Merk | JDI |
| Maat | 3.5 |
| Sollicitatie | HMD VR AR |
| Oplossing | 1440×1600 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | MIPI |
| merk | JDI |
| model | LPM035M407B |
| diagonale maat | 3.5 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1440(RGB)×1600 615PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 59.4(H)×66(V) mm |
| omtrek afm. | 62.2(H)×73.6(V) mm |
| bezel gebied | - |
| behandeling | Hard coating |
| richting bekijken | Symmetry |
| reactietijd | - |
| kijk hoek | - |
| bedrijfsmodus | IPS, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M |
| lichtbron | WLED [5S2P] |
| gewicht | 17.0g (Typ.) |
| ontworpen voor | HMD VR AR |
| frame rate | 90Hz |
| aanraakpaneel | Without |
| interface-type | MIPI (4 data lanes) |
| stroomvoorziening | 1.8/5.7/-5.7V (Typ.)(VDDI/AVDD/AVEE) |
| omgeving | Operating Temperature: -10 ~ 55 °C ; Storage Temperature: -20 ~ 70 °C |
