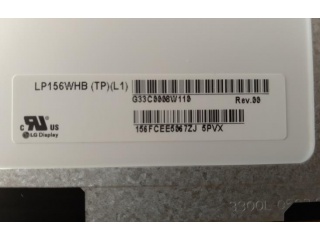

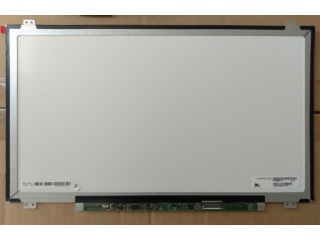

| Onderdeel nummer | LP156WHB-TPL1 |
| Merk | LG Display |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1366×768 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | LG Display |
| paneel grootte | 15.6" |
| oplossing | 1366(RGB)×768, WXGA, 100PPI |
| weergavegebied | 344.232(W)×193.536(H) mm |
| helderheid | - |
| kijk hoek | - |
| beste zicht op | 6 o'clock |
| kleuren weergeven | 262K |
| frequentie | 60Hz |
| vorm stijl | - |
| signaal interface | eDP (1 Lane) , 30 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneelmodel | LP156WHB-TPL1 |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| contrast ratio | 500:1 (Typ.) (TM) |
| weergavemodus | TN, Normally White, Transmissive |
| reactietijd | 16 (Typ.)(Tr+Td) |
| soort lamp | WLED , With LED Driver |
| touch screen | Without |
| sollicitatie | Laptop |
| LP156WD1-TLD3 | LG Display | 15.6 | 1600×900 |
| LP156WF4-SPK1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLBA | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLRA | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLQ1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLT2 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN2 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPE1 | LG Display | 15.6 | 1366×768 |
