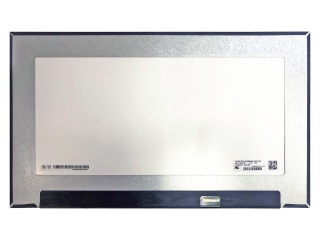

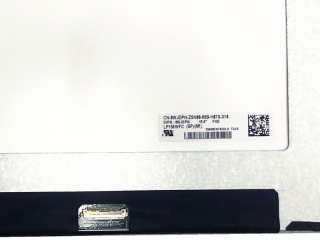

| Onderdeel nummer | LP156WFC-SPM1 |
| Merk | LG Display |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 700:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| fabrikant | LG Display |
| modelnaam | LP156WFC-SPM1 (LGD05E6) 0 Compatible |
| scherm grootte | 15.6 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1920(RGB)×1080 (FHD) 141PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 344.16 × 193.59 (H×V) |
| overzicht (mm) | 350.66 × 205.69 × 5.05 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Antiglare |
| luminantie | 220 cd/m² (Typ.) |
| contrast ratio | 700 : 1 (Typ.) (TM) |
| kijk hoek | 80/80/80/80 (Min.)(CR≥10) |
| antwoord | 30 (Typ.)(Tr+Td) ms |
| goed zicht op | Symmetry |
| werk modus | IPS, Normally Black, Transmissive |
| kleuren diepte | 262K |
| tegenlicht | WLED , 15K hours , With LED Driver |
| omlijnde vorm | Slim (PCBA Bent, T≤3.0mm) |
| gebruikt voor | Laptop |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C ; Vibration Level: 2.0G (19.6 m/s²) |
