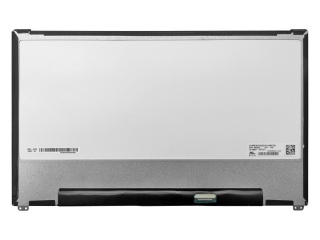

| Onderdeel nummer | LP140WF7-SPH1 |
| Merk | LG Display |
| Maat | 14.0 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 700:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | LG Display |
| model | LP140WF7-SPH1 (LGD0557) |
| diagonale maat | 14.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 157PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 309.31(H)×173.99(V) mm |
| omtrek afm. | 320.4(H)×194.65(V) ×5.25(D) mm |
| bezel gebied | - |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 300 cd/m² (Typ.) |
| contrast ratio | 700:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Td) |
| kijk hoek | 80/80/80/80 (Min.)(CR≥10) |
| bedrijfsmodus | IPS, Normally Black, Transmissive |
| ondersteunende kleur | 262K 96% sRGB |
| lichtbron | WLED , 15K hours , With LED Driver |
| vorm stijl | Slim (PCBA Bent, T≤3.0mm) |
| ontworpen voor | Laptop |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| interface-type | eDP (2 Lanes) , HBR1 (2.7G/lane) , 30 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
