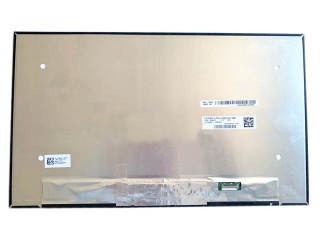

| Onderdeel nummer | LP133WF7-SPF2 |
| Merk | LG Display |
| Maat | 13.3 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | LG Display |
| paneel grootte | 13.3" |
| oplossing | 1920(RGB)×1080, FHD, 166PPI |
| weergavegebied | 293.76(W)×165.24(H) mm |
| omtrek grootte | 300.26(W)×177.55(H) ×4.4(D) mm |
| helderheid | 300 cd/m² (Typ.) |
| kijk hoek | 80/80/80/80 (Min.)(CR≥10) |
| beste zicht op | Symmetry |
| kleuren weergeven | 16.7M 73% NTSC |
| frequentie | 60Hz |
| vorm stijl | Slim (PCBA Bent, T≤3.0mm) |
| signaal interface | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneelmodel | LP133WF7-SPF2 (LGD05DC) |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| oppervlak | Antiglare, Hard coating (3H) |
| contrast ratio | 800:1 (Typ.) (TM) |
| weergavemodus | IPS, Normally Black, Transmissive |
| reactietijd | 30 (Typ.)(Tr+Td) |
| soort lamp | WLED , 15K hours , With LED Driver |
| touch screen | Without |
| sollicitatie | Laptop |
