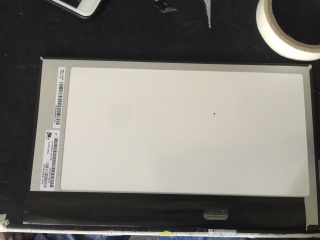

| Onderdeel nummer | LP116WH7-SPC2 |
| Merk | LG Display |
| Maat | 11.6 |
| Sollicitatie | Laptop |
| Oplossing | 1366×768 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 600:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | LG Display |
| paneelmodel | LP116WH7-SPC2 (LGD04DC) |
| paneel grootte | 11.6" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 1366(RGB)×768, WXGA, 135PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 256.125(W)×144(H) mm |
| omlijsting openen | 259.25(W)×147.8(H) mm |
| omtrek grootte | 268.35(W)×157.35(H) ×4.8(D) mm |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 220 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) (TM) |
| kijk hoek | 80/80/80/80 (Min.)(CR≥10) |
| weergavemodus | IPS, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 35 (Typ.)(Tr+Td) |
| kleuren weergeven | 262K 49% NTSC |
| soort lamp | WLED , 15K hours , With LED Driver |
| frequentie | 60Hz |
| touch screen | Without |
| vorm stijl | Slim (PCBA Bent, T≤3.0mm) |
| sollicitatie | Laptop |
| signaal interface | eDP (2 Lanes) , HBR1 (2.7G/lane) , 30 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
