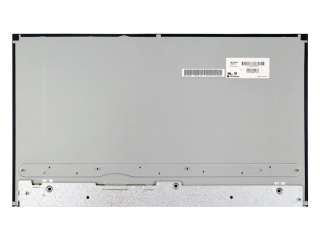

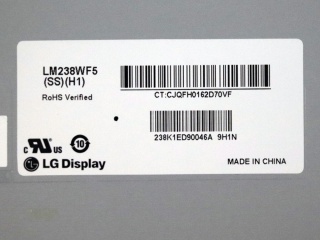

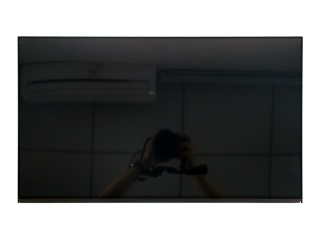

| Onderdeel nummer | LM238WF5-SSH1 |
| Merk | LG Display |
| Maat | 23.8 |
| Sollicitatie | Desktop Monitor |
| Oplossing | 1920×1080 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | 15S4P |
| Koppel | LVDS |
| fabrikant | LG Display |
| modelnaam | LM238WF5-SSH1 |
| scherm grootte | 23.8 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1920(RGB)×1080 (FHD) 92PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 527.04 × 296.46 (H×V) |
| overzicht (mm) | 535.24 × 313.63 × 11.21 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Glare (Haze 0%), Hard coating (3H) |
| luminantie | 250 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| antwoord | 14 (Typ.)(G to G) ms |
| goed zicht op | Symmetry |
| werk modus | IPS, Normally Black, Transmissive |
| kleuren diepte | 16.7M |
| tegenlicht | 15S4P WLED , 30K hours , No Driver |
| massa | 2.24/2.36Kgs (Typ./Max.) |
| gebruikt voor | Desktop Monitor |
| vernieuwingsfrequentie | 60Hz |
| touch screen | In-Cell Touch |
| signaal type | LVDS (2 ch, 8-bit) , Connector 30 pins |
| spanningsvoorziening | 5.0V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
