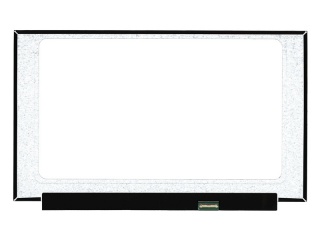

| Onderdeel nummer | LM156LFBL01 |
| Merk | PANDA |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | Oxide TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | PANDA |
| model | LM156LFBL01 (CNP0032) |
| diagonale maat | 15.6 inch |
| type | Oxide TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 344.16(H)×193.59(V) mm |
| omtrek afm. | 350.66(H)×216.25(V) ×3.2(D) mm |
| bezel gebied | - |
| behandeling | Antiglare |
| luminantie | 220 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Tf) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedrijfsmodus | PAS, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 45% NTSC |
| lichtbron | WLED , 15K hours , With LED Driver |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| ontworpen voor | Laptop |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| interface-type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WF6-SPK1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLR1 | LG Display | 15.6 | 1366×768 |
| LTN156AT16-401 | Samsung | 15.6 | 1366×768 |
| LTN156AT17-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT20-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT36-D01 | Samsung | 15.6 | 1366×768 |
| N156BGE-L51 | Innolux | 15.6 | 1366×768 |
