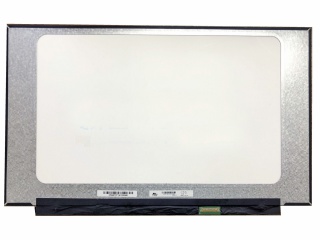

| Onderdeel nummer | LM156LF9L02 |
| Merk | PANDA |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | Oxide TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | PANDA |
| model | LM156LF9L02 |
| diagonale maat | 15.6 inch |
| type | Oxide TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 344.16(H)×193.59(V) mm |
| omtrek afm. | 350.66(H)×216.25(V) ×2.6(D) mm |
| bezel gebied | - |
| behandeling | Hard coating (3H) |
| luminantie | 300 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Tf) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| bedrijfsmodus | FFS, Normally Black, Transmissive |
| ondersteunende kleur | 262K |
| lichtbron | WLED , 15K hours , With LED Driver |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| ontworpen voor | Laptop |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| interface-type | eDP (2 Lanes) , 30 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| BT156GW02 V.0 | Innolux | 15.6 | 1366×768 |
| CLAA156WA12 | CPT | 15.6 | 1366×768 |
| G156XW01 V0 | AUO | 15.6 | 1366×768 |
| G156XW01 V1 | AUO | 15.6 | 1366×768 |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA2 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156O6-L01 | Innolux | 15.6 | 1600×900 |
