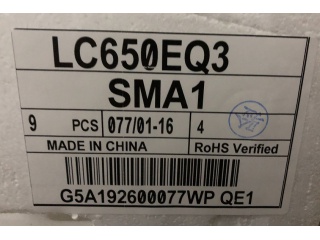

| Onderdeel nummer | LC650EQ3-SMA1 |
| Merk | LG Display |
| Maat | 65 |
| Sollicitatie | TV Sets |
| Oplossing | 3840×2160 |
| Samenstelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 1400:1 |
| Kleuren | 1.07B |
| Tegenlicht | No |
| Koppel | EPI |
| paneel merk | LG Display |
| paneel grootte | 65" |
| oplossing | 3840(RGB)×2160, UHD, 68PPI |
| weergavegebied | 1428.48(W)×803.52(H) mm |
| omtrek grootte | 1440.3(W)×818.3(H) ×1.2(D) mm |
| helderheid | 0 cd/m² |
| kijk hoek | 89/89/89/89 (Min.)(CR≥10) |
| beste zicht op | Symmetry |
| glas diepte | - |
| kleuren weergeven | 1.07B 83% NTSC |
| frequentie | 120Hz |
| bestuurder ic | COF Built-in 12 source chips |
| paneel gewicht | 3.60/3.78Kgs (Typ./Max.) |
| signaal interface | EPI , 136 pins Connector |
| ingangsspanning | 12.0V (Typ.)(VLCD) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneelmodel | LC650EQ3-SMA1 |
| paneel type | a-Si TFT-LCD , CELL |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| oppervlak | Antiglare (Haze 3%), Hard coating (2H) |
| contrast ratio | 1400:1 (Typ.) (TM) |
| weergavemodus | IPS, Normally Black, Transmissive |
| reactietijd | 8/10 (Typ.)(Tr/Td) |
| doorlaatbaarheid | 4.38% (Typ.)(with Polarizer) |
| soort lamp | No B/L |
| touch screen | Without |
| sollicitatie | TV Sets |
