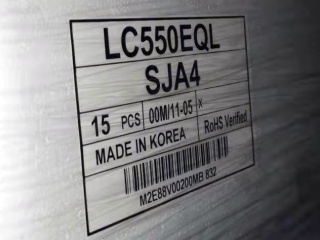

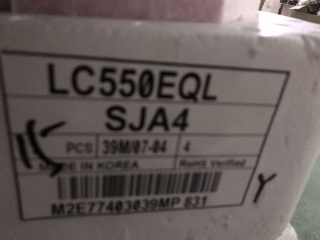

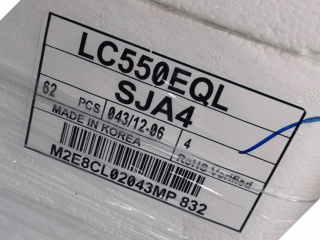

| Onderdeel nummer | LC550EQL-SJA4 |
| Merk | LG Display |
| Maat | 55 |
| Sollicitatie | TV Sets |
| Oplossing | 3840×2160 |
| Samenstelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 1400:1 |
| Kleuren | 1.07B |
| Tegenlicht | No |
| Koppel | V-by-One |
| fabrikant | LG Display |
| modelnaam | LC550EQL-SJA4 |
| scherm grootte | 55 inch |
| scherm type | CELL , a-Si TFT-LCD |
| pixel nummer | 3840(RGB)×2160 (UHD) 80PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 1209.6 × 680.4 (H×V) |
| overzicht (mm) | 1225.2 × 696.7 × 1.3 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Antiglare (Haze 3%), Hard coating (2H) |
| luminantie | 0 cd/m² |
| contrast ratio | 1400 : 1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Min.)(CR≥10) |
| antwoord | 5 (Typ.)(G to G) ms |
| goed zicht op | Symmetry |
| werk modus | IPS, Normally Black, Transmissive |
| glas dikte | - |
| doorlaatbaarheid | 5.2% (Typ.)(with Polarizer) |
| kleuren diepte | 1.07B 68% NTSC |
| tegenlicht | No B/L |
| massa | 2.50/2.63Kgs (Typ./Max.) |
| gebruikt voor | TV Sets |
| vernieuwingsfrequentie | 120Hz |
| touch screen | Without |
| driver ic lijst | Built-in COF 12 source chips |
| signaal type | V-by-One 16 lane , 97 pins Connector |
| spanningsvoorziening | 12.0V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C |
