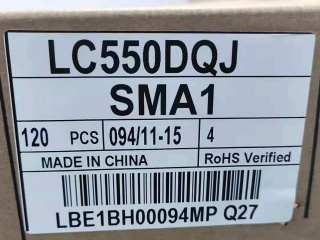

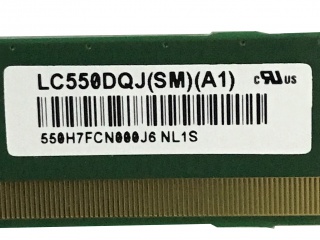

| Onderdeel nummer | LC550DQJ-SMA1 |
| Merk | LG Display |
| Maat | 55 |
| Sollicitatie | TV Sets |
| Oplossing | 3840×2160 |
| Samenstelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 1300:1 |
| Kleuren | 1.07B |
| Tegenlicht | No |
| Koppel | EPI |
| merk | LG Display |
| diagonale maat | 55 inch |
| pixel formaat | 3840(RGB)×2160 [UHD] 80PPI |
| actief gebied | 1209.6(H)×680.4(V) mm |
| bezel gebied | - |
| luminantie | 0 cd/m² |
| richting bekijken | Symmetry |
| kijk hoek | 89/89/89/89 (Min.)(CR≥10) |
| plaatdikte | - |
| ondersteunende kleur | 1.07B |
| gewicht | 2.50/2.63Kgs (Typ./Max.) |
| frame rate | 60Hz |
| d-ic detail | COF Built-in 6 source chips |
| interface-type | EPI , 120 pins Connector |
| stroomvoorziening | 12.0V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | LC550DQJ-SMA1 |
| type | a-Si TFT-LCD , CELL |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | 1221.4(H)×694.8(V) ×1.2(D) mm |
| behandeling | Antiglare (Haze 3%), Hard coating (2H) |
| contrast ratio | 1300:1 (Typ.) (TM) |
| reactietijd | 8/10 (Typ.)(Tr/Td) |
| bedrijfsmodus | IPS, Normally Black, Transmissive |
| doorlaatbaarheid | 5.49% (Typ.)(with Polarizer) |
| lichtbron | No B/L |
| ontworpen voor | TV Sets |
| aanraakpaneel | Without |
| LC550DUE-FGP2 | LG Display | 55 | 1920×1080 |
| LC550DUE-MGA3 | LG Display | 55 | 1920×1080 |
| LC550DUF-VGF1 | LG Display | 55 | 1920×1080 |
| LC550DUH-PGF2 | LG Display | 55 | 1920×1080 |
| LC550DUJ-SGE1 | LG Display | 55 | 1920×1080 |
| LC550DUN-PGP1 | LG Display | 55 | 1920×1080 |
| LC550DUN-PGP2 | LG Display | 55 | 1920×1080 |
| LC550DUN-SFU2 | LG Display | 55 | 1920×1080 |
| LC550DUS-SCM3 | LG Display | 55 | 1920×1080 |
| LC550DUY-SHA1 | LG Display | 55 | 1920×1080 |
