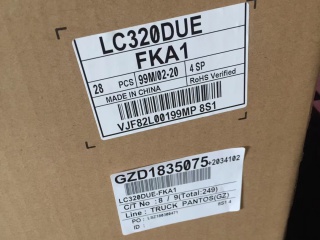

| Onderdeel nummer | LC320DUE-FKA1 |
| Merk | LG Display |
| Maat | 32.0 |
| Sollicitatie | TV Sets |
| Oplossing | 1920×1080 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1200:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| fabrikant | LG Display |
| modelnaam | LC320DUE-FKA1 |
| scherm grootte | 32.0 inch |
| scherm type | LCM , a-Si TFT-LCD |
| pixel nummer | 1920(RGB)×1080 (FHD) 69PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 698.4 × 392.85 (H×V) |
| overzicht (mm) | 739 × 436.3 (H×V×D) |
| bezel gebied (mm) | 701.4 × 395.4 (H×V) |
| behandeling | Antiglare (Haze 3%), Hard coating (2H) |
| luminantie | 240 cd/m² (Typ.) |
| contrast ratio | 1200 : 1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Min.)(CR≥10) |
| antwoord | 7 (Typ.)(G to G) ms |
| goed zicht op | Symmetry |
| werk modus | IPS, Normally Black, Transmissive |
| kleuren diepte | 16.7M 70% NTSC |
| tegenlicht | WLED , 30K hours , No Driver |
| massa | 3.20/3.50Kgs (Typ./Max.) |
| gebruikt voor | TV Sets |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| spanningsvoorziening | 12.0V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LC320DUE-FGA4 | LG Display | 31.5 | 1920×1080 |
| LC320DUN-SFR1 | LG Display | 31.5 | 1920×1080 |
| LC320DXE-FGA3 | LG Display | 31.5 | 1366×768 |
| LC320DXJ-SFA9 | LG Display | 31.5 | 1366×768 |
| LC320DXJ-SFE1 | LG Display | 31.5 | 1366×768 |
| LC320DXN-SER2 | LG Display | 31.5 | 1366×768 |
| LC320DXN-SER3 | LG Display | 31.5 | 1366×768 |
| LC320DXN-SEU1 | LG Display | 31.5 | 1366×768 |
| LC320DXN-SFR1 | LG Display | 31.5 | 1366×768 |
| LC320DXY-SGA2 | LG Display | 31.5 | 1366×768 |
