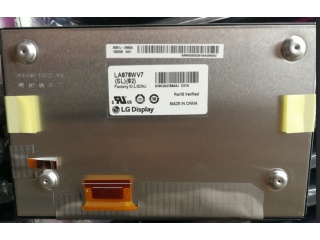

| Onderdeel nummer | LA070WV7-SL02 |
| Merk | LG Display |
| Maat | 7.0 |
| Sollicitatie | Outdoor High Brightn |
| Oplossing | 800×480 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1100:1 |
| Kleuren | 16.7M |
| Tegenlicht | 6S3P |
| Koppel | LVDS |
| fabrikant | LG Display |
| modelnaam | LA070WV7-SL02 |
| scherm grootte | 7.0 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 800(RGB)×480 (WVGA) 133PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 152.4 × 91.44 (H×V) |
| overzicht (mm) | 166.4 × 106.2 × 10.7 (H×V×D) |
| bezel gebied (mm) | 158.4 × 94.2 (H×V) |
| behandeling | Antiglare (Haze 25%) |
| luminantie | 1000 cd/m² (Typ.) |
| contrast ratio | 1100 : 1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| antwoord | 16/14 (Typ.)(Tr/Td) ms |
| goed zicht op | Symmetry |
| werk modus | IPS, Normally Black, Transmissive |
| kleuren diepte | 16.7M 65% NTSC |
| tegenlicht | 6S3P WLED , 30K hours , No Driver |
| massa | 162/167g (Typ./Max.) |
| gebruikt voor | Outdoor High Brightness Automotive Display |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | LVDS (1 ch, 8-bit) , FPC 50 pins |
| spanningsvoorziening | 3.3/13/18/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| max. waarderingen | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²) |
