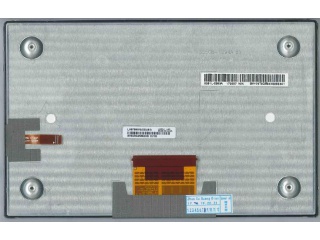

| Onderdeel nummer | LA070WV6-SD02 |
| Merk | LG Display |
| Maat | 7.0 |
| Sollicitatie | Automotive Display |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | 5S2P |
| Koppel | Parallel |
| paneel merk | LG Display |
| paneel grootte | 7.0" |
| oplossing | 800(RGB)×480, WVGA, 133PPI |
| weergavegebied | 152.4(W)×91.44(H) mm |
| omtrek grootte | 166.6(W)×105.8(H) ×10.5(D) mm |
| helderheid | 610 cd/m² (Typ.) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste zicht op | Symmetry |
| kleuren weergeven | 16.7M 60% NTSC |
| frequentie | 60Hz |
| paneel gewicht | 180/185g (Typ./Max.) |
| signaal interface | Parallel RGB (1 ch, 6-bit) , 66 pins FPC |
| ingangsspanning | 3.3/13.0/18.5/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| omgeving | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| paneelmodel | LA070WV6-SD02 |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | 155.0(W)×94.0(H) mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| weergavemodus | IPS, Normally Black, Transmissive |
| reactietijd | 15/10 (Typ.)(Tr/Td) |
| soort lamp | 5S2P WLED , 20K hours , Without Driver |
| touch screen | Without |
| sollicitatie | Automotive Display |
| LA070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LA070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LA070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LA070WV1-TH01 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD03 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD04 | LG Display | 7.0 | 800×480 |
| LA070WV5-SL01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SD01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SL01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SL02 | LG Display | 7.0 | 800×480 |
