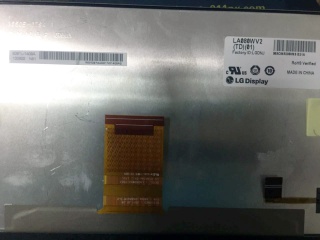

| Onderdeel nummer | LA070WV2-TD01 |
| Merk | LG Display |
| Maat | 7.0 |
| Sollicitatie | Automotive Display |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K |
| Tegenlicht | 9S2P |
| Koppel | Parallel |
| paneel merk | LG Display |
| paneelmodel | LA070WV2-TD01 |
| paneel grootte | 7.0" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 800(RGB)×480, WVGA, 133PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 152.4(W)×91.44(H) mm |
| omlijsting openen | 154.45(W)×93.24(H) mm |
| omtrek grootte | 169(W)×103.45(H) mm |
| oppervlak | Antiglare |
| helderheid | 550 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) (TM) |
| kijk hoek | 70/70/50/60 (Typ.)(CR≥10) |
| weergavemodus | TN, Normally White, Transmissive |
| beste zicht op | - |
| reactietijd | 6/9 (Typ.)(Tr/Td) |
| kleuren weergeven | 262K 64% NTSC |
| soort lamp | 9S2P WLED , Without Driver |
| frequentie | 60Hz |
| touch screen | Without |
| paneel gewicht | 165/175g (Typ./Max.) |
| sollicitatie | Automotive Display |
| signaal interface | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| ingangsspanning | 3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| omgeving | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
