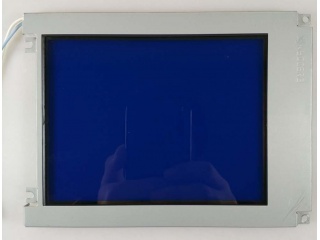

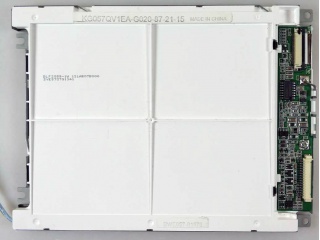

| Onderdeel nummer | KG057QV1EA-G020 |
| Merk | Kyocera |
| Maat | 5.7 |
| Sollicitatie | Industrial |
| Oplossing | 320×240 |
| Samenstelling | STN-LCD , LCM |
| Helderheid | |
| CR | 4:1 |
| Kleuren | Monochrome |
| Tegenlicht | CCFL |
| Koppel | |
| merk | Kyocera |
| diagonale maat | 5.7 inch |
| pixel formaat | 320×240 [QVGA] 70PPI |
| actief gebied | 115.18(H)×86.38(V) mm |
| luminantie | - |
| richting bekijken | - |
| kijk hoek | 45/45/20/40 (Typ.)(CR≥2) |
| ondersteunende kleur | Monochrome |
| gewicht | - |
| frame rate | - |
| omgeving | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| model | KG057QV1EA-G020 |
| type | STN-LCD , LCM |
| configuratie | Rectangle |
| omtrek afm. | - |
| contrast ratio | 4:1 (Typ.) (TM) |
| reactietijd | 380/120 (Typ.)(Tr/Td) |
| bedrijfsmodus | STN, Blue mode (Negative), Transmissive |
| lichtbron | CCFL |
| ontworpen voor | Industrial |
| aanraakpaneel | Without |
| KG057QV1CA-G00 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G000 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G01 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G02 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G020 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G020W | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G03 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G04 | Kyocera | 5.7 | 320×240 |
| KG057QV1CF-G050 | Kyocera | 5.7 | 320×240 |
| KG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
