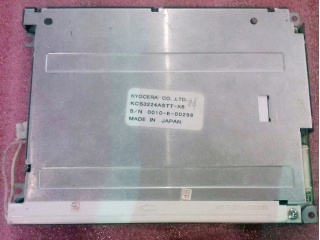

| Onderdeel nummer | KCS3224ASTT-X6 |
| Merk | Kyocera |
| Maat | 5.7 |
| Sollicitatie | Industrial |
| Oplossing | 320×240 |
| Samenstelling | CSTN-LCD , LCM |
| Helderheid | |
| CR | 25:1 |
| Kleuren | Color |
| Tegenlicht | - |
| Koppel | Parallel |
| merk | Kyocera |
| diagonale maat | 5.7 inch |
| pixel formaat | 320(RGB)×240 [QVGA] 70PPI |
| actief gebied | 115.2(H)×86.4(V) mm |
| luminantie | - |
| richting bekijken | - |
| kijk hoek | 50/50/30/30 (Typ.)(CR≥2) |
| ondersteunende kleur | Color |
| gewicht | - |
| frame rate | 75Hz |
| interface-type | Parallel Data (1ch, 8-bit) Connector |
| stroomvoorziening | 5.0V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | KCS3224ASTT-X6 |
| type | CSTN-LCD , LCM |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | - |
| contrast ratio | 25:1 (Typ.) (TM) |
| reactietijd | 220/110 (Typ.)(Tr/Td) |
| bedrijfsmodus | STN, Normally Black, Transmissive |
| lichtbron | |
| ontworpen voor | Industrial |
| aanraakpaneel | Without |
| AM-320240N1TMQW-T30H-D(R) | AMPIRE | 5.7 | 320×240 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| COM57H5M10XRC | ORTUSTECH | 5.7 | 640×480 |
| EL320.240.36 HB CCB | Lumineq | 5.7 | 320×240 |
| G057VN01 V2 | AUO | 5.7 | 640×480 |
| LM32019T | SHARP | 5.7 | 320×240 |
| LTA057A341F | TOSHIBA | 5.7 | 320×240 |
| TM057QDH01 | Tianma | 5.7 | 640×480 |
| TM057QDHG02 | Tianma | 5.7 | 640×480 |
