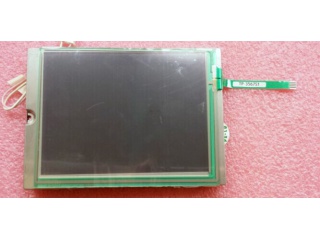

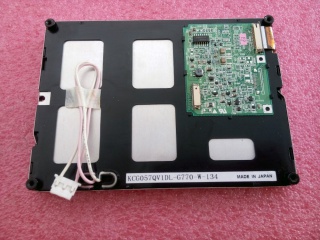

| Onderdeel nummer | KCG057QV1DL-G770 |
| Merk | Kyocera |
| Maat | 5.7 |
| Sollicitatie | Industrial |
| Oplossing | 320×240 |
| Samenstelling | CSTN-LCD, LCM |
| Helderheid | |
| CR | 55:1 |
| Kleuren | Color |
| Tegenlicht | CCFL |
| Koppel | Parallel |
| merk | Kyocera |
| model | KCG057QV1DL-G770 |
| diagonale maat | 5.7 inch |
| type | CSTN-LCD, LCM |
| pixel formaat | 320(RGB)×240 [QVGA] 70PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 115.2(H)×86.4(V) mm |
| omtrek afm. | 144(H)×104.8(V) ×15.3(D) mm |
| bezel gebied | 119.4(H)×90.6(V) mm |
| behandeling | Hard coating (2H) |
| luminantie | - |
| contrast ratio | 55:1 (Typ.) (TM) |
| richting bekijken | - |
| reactietijd | 180/170 (Typ.)(Tr/Td) |
| kijk hoek | 50/50/20/35 (Typ.)(CR≥2) |
| bedrijfsmodus | STN, Normally Black, Transmissive |
| ondersteunende kleur | Color |
| lichtbron | CCFL [1 pcs] |
| gewicht | 220g (Typ.) |
| ontworpen voor | Industrial |
| frame rate | 75Hz |
| aanraakpaneel | 4-wire Resistive Touch |
| interface-type | Parallel Data (1ch, 8-bit) Connector |
| stroomvoorziening | 3.3/5.0V (Typ.)(VDD) |
| omgeving | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
