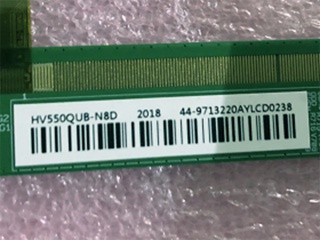

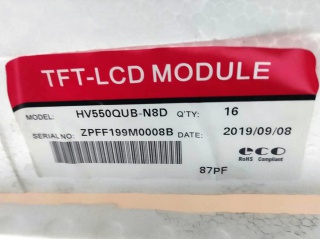

| Onderdeel nummer | HV550QUB-N8D |
| Merk | BOE |
| Maat | 55 |
| Sollicitatie | TV Sets |
| Oplossing | 3840×2160 |
| Samenstelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 1200:1 |
| Kleuren | 16.7M |
| Tegenlicht | No |
| Koppel | V-by-One |
| fabrikant | BOE |
| scherm grootte | 55 inch |
| pixel nummer | 3840(RGB)×2160 (UHD) 80PPI |
| actief gebied (mm) | 1209.6 × 680.4 (H×V) |
| bezel gebied (mm) | - |
| luminantie | 0 cd/m² |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| glas dikte | 0.50+0.50 mm |
| kleuren diepte | 16.7M 76% NTSC |
| massa | 2.70Kgs (Typ.) |
| vernieuwingsfrequentie | 60Hz |
| driver ic lijst | Built-in COF 12 source chips |
| signaal type | V-by-One 8 lane , 51 pins Connector |
| spanningsvoorziening | 12.0V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnaam | HV550QUB-N8D |
| scherm type | CELL , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 1221.4 × 694.8 × 1.34 (H×V×D) |
| behandeling | Antiglare (Haze 1%), Hard coating (2H) |
| contrast ratio | 1200 : 1 (Typ.) (TM) |
| antwoord | 8 (Typ.)(G to G) ms |
| werk modus | ADS, Normally Black, Transmissive |
| doorlaatbaarheid | 5.3% (Typ.)(with Polarizer) |
| tegenlicht | No B/L |
| gebruikt voor | TV Sets |
| touch screen | Without |
| ASI545FB01-0 | Samsung | 55 | 1920×1080 |
| HV550QUB-B10 | BOE | 55 | 3840×2160 |
| LC550EUD-SCA2 | LG Display | 55 | 1920×1080 |
| LC550EUF-FGF1 | LG Display | 55 | 1920×1080 |
| LC550EUG-PFF1 | LG Display | 55 | 1920×1080 |
| LC550EUH-RDA2 | LG Display | 55 | 1920×1080 |
| LC550EUN-SFM2 | LG Display | 55 | 1920×1080 |
| LTA550HJ05 | Samsung | 55 | 1920×1080 |
| LTF550HF01 | Samsung | 55 | 1920×1080 |
| P546HW03 V0 | AUO | 55 | 1920×1080 |
