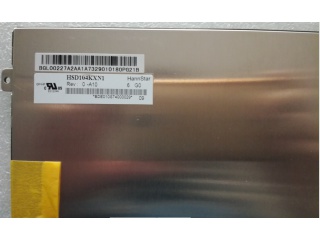

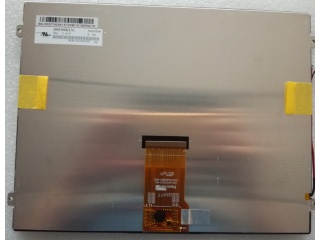

| Onderdeel nummer | HSD104KXN1-A10 |
| Merk | HannStar |
| Maat | 10.4 |
| Sollicitatie | Automotive Display |
| Oplossing | 1024×768 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 900:1 |
| Kleuren | 262K/16.2M |
| Tegenlicht | 4S8P |
| Koppel | |
| fabrikant | HannStar |
| modelnaam | HSD104KXN1-A10 |
| scherm grootte | 10.4 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1024(RGB)×768 (XGA) 123PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 211.2 × 158.4 (H×V) |
| overzicht (mm) | 236 × 174.3 × 7 (H×V×D) |
| bezel gebied (mm) | 213.2 × 160.4 (H×V) |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 600 cd/m² (Typ.) |
| contrast ratio | 900 : 1 (Typ.) (TM) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| antwoord | 30 (Typ.)(Tr+Td) ms |
| goed zicht op | Symmetry |
| werk modus | IPS Pro, Normally Black, Transmissive |
| kleuren diepte | 262K/16.2M |
| tegenlicht | 4S8P WLED , 30K hours , No Driver |
| massa | 316g |
| gebruikt voor | Automotive Display |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
