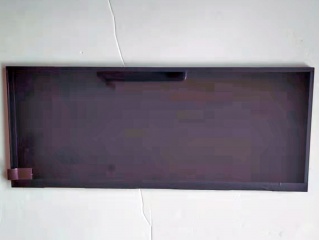

| Onderdeel nummer | HSD103JPW2-H10 |
| Merk | HannStar |
| Maat | 10.3 |
| Sollicitatie | Outdoor High Brightn |
| Oplossing | 1920×720 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1500:1 |
| Kleuren | 16.7M |
| Tegenlicht | 4 |
| Koppel | LVDS |
| fabrikant | HannStar |
| scherm grootte | 10.3 inch |
| pixel nummer | 1920(RGB)×720 200PPI |
| actief gebied (mm) | 243.648 × 91.368 (H×V) |
| bezel gebied (mm) | 246.7 × 94.4 (H×V) |
| luminantie | 1000 cd/m² (Typ.) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| kleuren diepte | 16.7M 70% NTSC |
| massa | TBD |
| vernieuwingsfrequentie | 60Hz |
| signaal type | LVDS (2 ch, 8-bit) , 60 pins FPC |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| modelnaam | HSD103JPW2-H10 |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 258.8 × 110 × 17 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| contrast ratio | 1500 : 1 (Typ.) (TM) |
| antwoord | 30 (Max.)(Tr+Td) ms |
| werk modus | IPS Pro, Normally Black, Transmissive |
| tegenlicht | 4 strings WLED , 20K hours , No Driver |
| gebruikt voor | Outdoor High Brightness Automotive Display |
| touch screen | Without |
