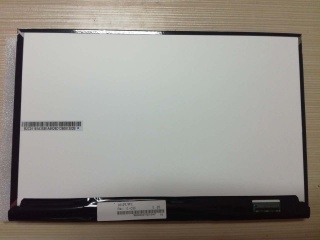

| Onderdeel nummer | HSD101PUW1-C30 |
| Merk | HannStar |
| Maat | 10.1 |
| Sollicitatie | Pad & Tablet |
| Oplossing | 1920×1200 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | |
| merk | HannStar |
| model | HSD101PUW1-C30 |
| diagonale maat | 10.1 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1200 [WUXGA] 225PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 216.576(H)×135.36(V) mm |
| omtrek afm. | - |
| luminantie | - |
| contrast ratio | 1000:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Td) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| bedrijfsmodus | IPS Pro, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 50% NTSC |
| lichtbron | WLED , 15K hours |
| gewicht | - |
| ontworpen voor | Pad & Tablet |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
