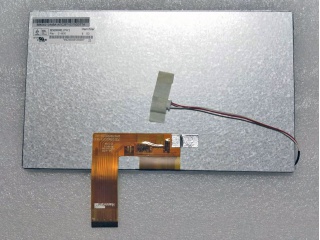

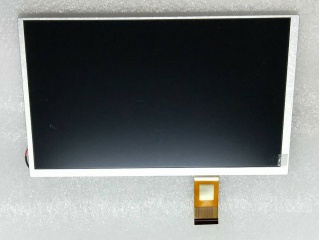

| Onderdeel nummer | HSD090LFW1-B00 |
| Merk | HannStar |
| Maat | 9.0 |
| Sollicitatie | Automotive Display |
| Oplossing | 1024×600 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 262K/16.2M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| merk | HannStar |
| model | HSD090LFW1-B00 |
| diagonale maat | 9.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1024(RGB)×600 [WSVGA] 132PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 196.608(H)×114.15(V) mm |
| omtrek afm. | 211.1(H)×126.5(V) ×6(D) mm |
| bezel gebied | 200.01(H)×117.55(V) mm |
| behandeling | Glare (Haze 0%) |
| luminantie | 450 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 17/18 (Typ.)(Tr/Td) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedrijfsmodus | IPS Pro, Normally Black, Transmissive |
| ondersteunende kleur | 262K/16.2M 50% NTSC |
| lichtbron | WLED , 150K hours , W/O Driver |
| gewicht | 230g (Typ.) |
| ontworpen voor | Automotive Display |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| interface-type | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| stroomvoorziening | 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| omgeving | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
