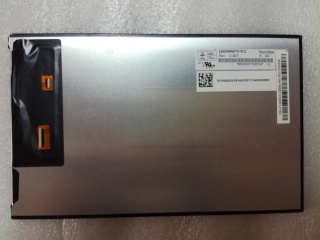

| Onderdeel nummer | HSD080PWW2-B01 |
| Merk | HannStar |
| Maat | 8.0 |
| Sollicitatie | Pad & Tablet Ind |
| Oplossing | 800×1280 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | |
| merk | HannStar |
| model | HSD080PWW2-B01 |
| diagonale maat | 8.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 800(RGB)×1280 [WXGA] 188PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 107.64(H)×172.224(V) mm |
| omtrek afm. | 114.8(H)×184.7(V) ×3.71(D) mm |
| bezel gebied | - |
| behandeling | Hard coating (3H) |
| luminantie | 450 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 30 (Typ.)(Tr+Td) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedrijfsmodus | IPS Pro, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 60% NTSC |
| lichtbron | WLED [7S3P] , 15K hours , W/O Driver |
| gewicht | 100g (Typ.) |
| ontworpen voor | Pad & Tablet Industrial |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -30 ~ 65 °C |
