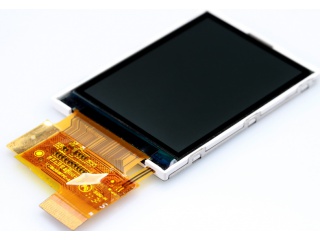

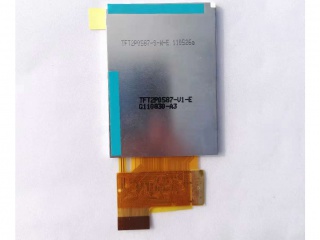

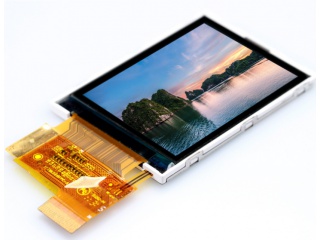

| Onderdeel nummer | H220VA01 |
| Merk | AUO |
| Maat | 2.2 |
| Sollicitatie | Mobile Phone |
| Oplossing | 240×320 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 75:19:1 |
| Kleuren | 262K |
| Tegenlicht | 4S1P |
| Koppel | Parallel |
| fabrikant | AUO |
| scherm grootte | 2.2 inch |
| pixel nummer | 240(RGB)×320 (QVGA) 180PPI |
| actief gebied (mm) | 33.84 × 45.12 (H×V) |
| bezel gebied (mm) | 35.4 × 46.92 (H×V) |
| luminantie | 100 cd/m² (Typ.) |
| kijk hoek | 47/28/30/80 (Typ.)(CR≥10) |
| goed zicht op | 6 o'clock |
| kleuren diepte | 262K 42% NTSC |
| massa | - |
| vernieuwingsfrequentie | - |
| signaal type | Parallel RGB (1 ch, 6-bit) + SPI , 39 pins FPC |
| spanningsvoorziening | 2.8V (Typ.) |
| max. waarderingen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| modelnaam | H220VA01 |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 40.6 × 56.66 × 3.11 (H×V×D) |
| behandeling | - |
| contrast ratio | 75 : 1 (Typ.) (TM) 9:1 (Typ.) (RF) |
| antwoord | 29 (Typ.)(Tr+Td) ms |
| werk modus | TN, Normally White, Transflective |
| tegenlicht | 4S1P WLED , No Driver |
| gebruikt voor | Mobile Phone |
| touch screen | Without |
