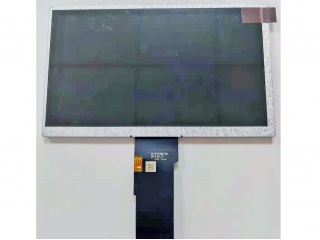

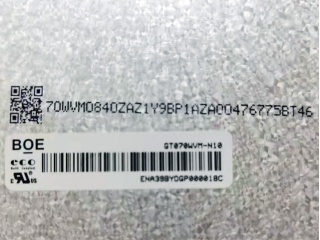

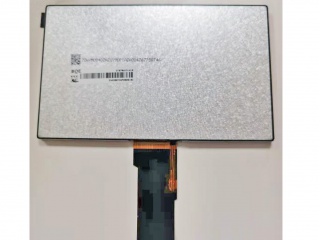

| Onderdeel nummer | GT070WVM-N10-3GP0 |
| Merk | BOE |
| Maat | 7.0 |
| Sollicitatie | Industrial |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 600:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | WLED |
| Koppel | |
| paneel merk | BOE |
| paneel grootte | 7.0" |
| oplossing | 800(RGB)×480, WVGA, 134PPI |
| weergavegebied | 154.08(W)×85.92(H) mm |
| omtrek grootte | 164.9(W)×100(H) ×6(D) mm |
| helderheid | 500 cd/m² (Typ.) |
| kijk hoek | 75/75/60/75 (Typ.)(CR≥10) |
| beste zicht op | - |
| kleuren weergeven | 262K/16.7M 50% NTSC |
| frequentie | 60Hz |
| gewicht | 133±5g |
| paneelmodel | GT070WVM-N10-3GP0 |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | 157.08(W)×89.33(H) mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| contrast ratio | 600:1 (Typ.) (TM) |
| weergavemodus | TN, Normally White, Transmissive |
| reactietijd | 25 (Typ.)(Tr+Td) |
| soort lamp | WLED , Without Driver |
| touch screen | Without |
| sollicitatie | Industrial |
| C070FW02 V2 | AUO | 7.0 | 480×234 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| LQ070T5BG01 | SHARP | 7.0 | 480×234 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
| VVX07H005A90 | Panasonic | 7.0 | 800×1280 |
| YX070DK02 | SEBO | 7.0 | 800×480 |
