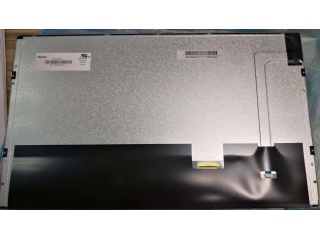

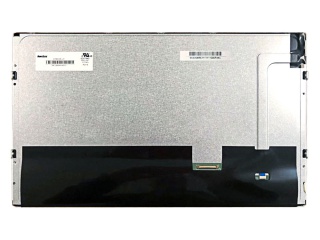

| Onderdeel nummer | G156HCE-L01 |
| Merk | Innolux |
| Maat | 15.6 |
| Sollicitatie | Industrial |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.2M |
| Tegenlicht | WLED |
| Koppel | |
| merk | Innolux |
| model | G156HCE-L01 |
| diagonale maat | 15.6 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 344.16(H)×193.59(V) mm |
| omtrek afm. | 363.8(H)×215.98(V) ×9.6(D) mm |
| bezel gebied | 347.06(H)×196.49(V) mm |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 450 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 13/12 (Typ.)(Tr/Td) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedrijfsmodus | AAS, Normally Black, Transmissive |
| ondersteunende kleur | 16.2M 73% NTSC |
| lichtbron | WLED , 50K hours , With LED Driver |
| gewicht | 1.06/1.10Kgs (Typ./Max.) |
| ontworpen voor | Industrial |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |
