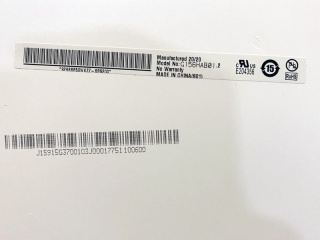

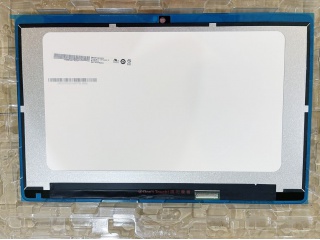

| Onderdeel nummer | G156HAB01.2 |
| Merk | AUO |
| Maat | 15.6 |
| Sollicitatie | Industrial |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD, Assemb |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.2M |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | AUO |
| model | G156HAB01.2 |
| diagonale maat | 15.6 inch |
| type | a-Si TFT-LCD, Assembly |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 344.16(H)×193.59(V) mm |
| omtrek afm. | - |
| luminantie | - |
| contrast ratio | 800:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Td) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| bedrijfsmodus | AHVA, Normally Black, Transmissive |
| ondersteunende kleur | 16.2M |
| lichtbron | WLED , With LED Driver |
| gewicht | - |
| ontworpen voor | Industrial |
| frame rate | 60Hz |
| aanraakpaneel | On-Cell Touch |
| interface-type | eDP (2 Lanes) Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
