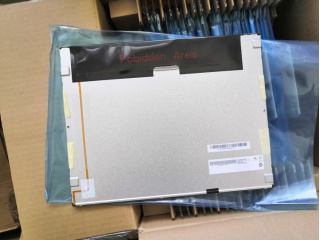

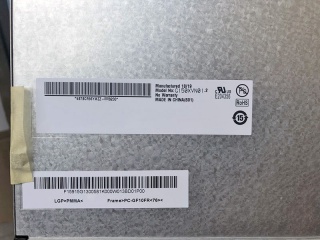

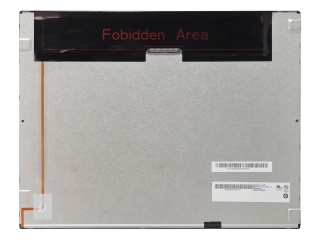

| Onderdeel nummer | G150XAN01.2 |
| Merk | AUO |
| Maat | 15.0 |
| Sollicitatie | Industrial |
| Oplossing | 1024×768 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.2M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| fabrikant | AUO |
| modelnaam | G150XAN01.2 |
| scherm grootte | 15.0 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1024(RGB)×768 (XGA) 85PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 304.128 × 228.096 (H×V) |
| overzicht (mm) | 326.5 × 253.5 × 6.8 (H×V×D) |
| bezel gebied (mm) | 309.9 × 236.3 (H×V) |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 500 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| antwoord | 25 (Typ.)(Tr+Td) ms |
| goed zicht op | Symmetry |
| werk modus | AHVA, Normally Black, Transmissive |
| kleuren diepte | 16.2M 60% NTSC |
| tegenlicht | WLED , 50K hours , With LED Driver |
| massa | 660g (Max.) |
| gebruikt voor | Industrial |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | LVDS (1 ch, 8-bit) , Connector 30 pins |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
