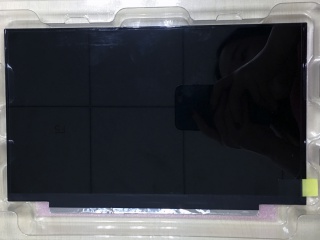

| Onderdeel nummer | G116HAN01.0 |
| Merk | AUO |
| Maat | 11.6 |
| Sollicitatie | Industrial |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | AUO |
| diagonale maat | 11.6 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 190PPI |
| actief gebied | 256.32(H)×144.18(V) mm |
| bezel gebied | - |
| luminantie | 300 cd/m² (Typ.) |
| richting bekijken | Symmetry |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| ondersteunende kleur | 16.7M 52% NTSC |
| gewicht | 200g (Max.) |
| frame rate | 60Hz |
| interface-type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | G116HAN01.0 |
| type | a-Si TFT-LCD , LCM |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | 268(H)×168.5(V) ×3(D) mm |
| behandeling | Hard coating (3H) |
| contrast ratio | 800:1 (Typ.) (TM) |
| reactietijd | 25 (Typ.)(Tr+Td) |
| bedrijfsmodus | AHVA, Normally Black, Transmissive |
| lichtbron | WLED , 15K hours , With LED Driver |
| ontworpen voor | Industrial |
| aanraakpaneel | Without |
