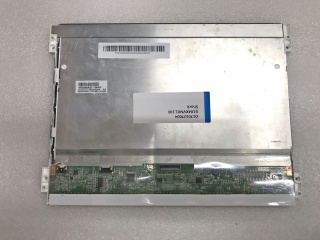

| Onderdeel nummer | G104XVN01.1 |
| Merk | AUO |
| Maat | 10.4 |
| Sollicitatie | Industrial |
| Oplossing | 1024×768 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 3000:1 |
| Kleuren | 262K/16.2M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| paneel merk | AUO |
| paneelmodel | G104XVN01.1 |
| paneel grootte | 10.4" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 1024(RGB)×768, XGA, 123PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 210.4(W)×157.8(H) mm |
| omlijsting openen | 215.4(W)×161.8(H) mm |
| omtrek grootte | 238.6(W)×175.8(H) ×7(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | - |
| contrast ratio | 3000:1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| weergavemodus | AMVA3, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 20/10 (Typ.)(Tr/Td) |
| kleuren weergeven | 262K/16.2M |
| soort lamp | WLED , With LED Driver |
| frequentie | 60Hz |
| touch screen | Without |
| paneel gewicht | - |
| sollicitatie | Industrial |
| signaal interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| G104X1-L01 | Innolux | 10.4 | 1024×768 |
| G104X1-L02 | Innolux | 10.4 | 1024×768 |
| G104X1-L03 | Innolux | 10.4 | 1024×768 |
| G104X1-L04 | Innolux | 10.4 | 1024×768 |
| G104XGE-L05 | Innolux | 10.4 | 1024×768 |
| G104XVN01.0 | AUO | 10.4 | 1024×768 |
| LQ104V1DC41 | SHARP | 10.4 | 640×480 |
| LQ104X2LX05B | SHARP | 10.4 | 1024×768 |
| NL6448BC33-53 | NLT | 10.4 | 640×480 |
| TM104QDSG09 | Tianma | 10.4 | 640×480 |
