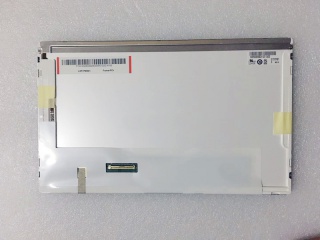

| Onderdeel nummer | G101STN01.6 |
| Merk | AUO |
| Maat | 10.1 |
| Sollicitatie | Industrial |
| Oplossing | 1024×600 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | WLED |
| Koppel | |
| fabrikant | AUO |
| modelnaam | G101STN01.6 |
| scherm grootte | 10.1 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1024(RGB)×600 (WSVGA) 117PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 222.72 × 125.28 (H×V) |
| overzicht (mm) | 235 × 143 × 5.2 (H×V×D) |
| bezel gebied (mm) | 226.34 × 128.10 (H×V) |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 250 cd/m² (Typ.) |
| contrast ratio | 500 : 1 (Typ.) (TM) |
| kijk hoek | 70/70/60/60 (Typ.)(CR≥10) |
| antwoord | 7/9 (Typ.)(Tr/Td) ms |
| goed zicht op | - |
| werk modus | TN, Normally White, Transmissive |
| kleuren diepte | 262K/16.7M 45% NTSC |
| tegenlicht | WLED , 15K hours , With LED Driver |
| massa | 180g (Typ.) |
| gebruikt voor | Industrial |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
