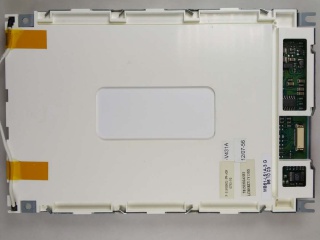

| Onderdeel nummer | F-51900NCU-FW-ADN |
| Merk | OPTREX |
| Maat | 5.7 |
| Sollicitatie | Industrial |
| Oplossing | 320×240 |
| Samenstelling | CSTN-LCD, LCM |
| Helderheid | |
| CR | 25:1 |
| Kleuren | Color |
| Tegenlicht | CCFL |
| Koppel | Parallel |
| merk | OPTREX |
| model | F-51900NCU-FW-ADN |
| diagonale maat | 5.7 inch |
| type | CSTN-LCD, LCM |
| pixel formaat | 320(RGB)×240 [QVGA] 70PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 115.2(H)×86.4(V) mm |
| omtrek afm. | 168(H)×111(V) ×7.4(D) mm |
| luminantie | 120 cd/m² (Typ.) |
| contrast ratio | 25:1 (Typ.) (TM) |
| richting bekijken | 12 o'clock |
| reactietijd | 300/100 (Typ.)(Tr/Td) |
| kijk hoek | - |
| bedrijfsmodus | STN, Normally Black, Transmissive |
| ondersteunende kleur | Color |
| lichtbron | CCFL , 20K hours , W/O Driver |
| gewicht | 234g (Max.) |
| ontworpen voor | Industrial |
| frame rate | 70Hz |
| aanraakpaneel | Without |
| interface-type | Parallel Data (1ch, 8-bit) |
| stroomvoorziening | 3.0/5.0V (Typ.)(VCC) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| AA057QD01 | Mitsubishi | 5.7 | 320×240 |
| C555001 | SII | 5.7 | 320×240 |
| EL320.240.36 AGL | Lumineq | 5.7 | 320×240 |
| EL320.240.36 HB CCB | Lumineq | 5.7 | 320×240 |
| ER0570A2NC6 | EDT | 5.7 | 320×240 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| SP14Q001-X | KOE | 5.7 | 320×240 |
| TM320240EGFWVSWD | Tianma | 5.7 | 320×240 |
| TX14D11VM1CAA | KOE | 5.7 | 320×240 |
| TX14D22VM1BAA | KOE | 5.7 | 320×240 |
