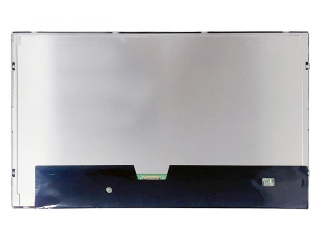

| Onderdeel nummer | EV156FHM-N10-5850 |
| Merk | BOE |
| Maat | 15.6 |
| Sollicitatie | Industrial |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | |
| merk | BOE |
| model | EV156FHM-N10-5850 |
| diagonale maat | 15.6 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 344.16(H)×193.59(V) mm |
| omtrek afm. | 363.8(H)×215.9(V) ×9.9(D) mm |
| bezel gebied | 348.2(H)×197.6(V) mm |
| behandeling | Antiglare |
| luminantie | 500 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 30 (Typ.)(Tr+Td) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedrijfsmodus | ADS, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 45% NTSC |
| lichtbron | WLED [8S4P] , 50K hours , With LED Driver |
| gewicht | 850g (Max.) |
| ontworpen voor | Industrial |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| Operating Temperature: 0 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C |
| AC156GA01 | Mitsubishi | 15.6 | 1366×768 |
| B156RW01 V1 | AUO | 15.6 | 1600×900 |
| LP156WF1-TLF3 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SLC1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TPB1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPP1 | LG Display | 15.6 | 1366×768 |
| LQ156M3LW01 | SHARP | 15.6 | 1920×1080 |
| N156BGE-L11 | Innolux | 15.6 | 1366×768 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
