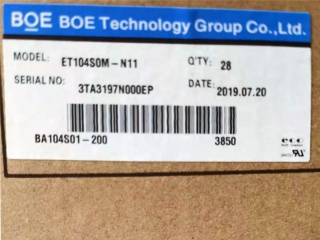

| Onderdeel nummer | ET104S0M-N11 |
| Merk | BOE |
| Maat | 10.4 |
| Sollicitatie | Industrial |
| Oplossing | 800×600 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 262K/16.2M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| merk | BOE |
| diagonale maat | 10.4 inch |
| pixel formaat | 800(RGB)×600 [SVGA] 96PPI |
| actief gebied | 211.2(H)×158.4(V) mm |
| bezel gebied | 215(H)×162(V) mm |
| luminantie | 350 cd/m² (Typ.) |
| richting bekijken | 12 o'clock |
| kijk hoek | 80/80/65/75 (Typ.)(CR≥10) |
| ondersteunende kleur | 262K/16.2M 55% NTSC |
| gewicht | 288g (Typ.) |
| frame rate | 60Hz |
| interface-type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | ET104S0M-N11 |
| type | a-Si TFT-LCD , LCM |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | 236(H)×176.9(V) ×5.9(D) mm |
| behandeling | Antiglare (Haze 25%) |
| contrast ratio | 800:1 (Typ.) (TM) |
| reactietijd | 30 (Typ.)(Tr+Td) |
| bedrijfsmodus | TN, Normally White, Transmissive |
| lichtbron | WLED , 30K hours , W/O Driver |
| ontworpen voor | Industrial |
| aanraakpaneel | Without |
