| Onderdeel nummer | COM70H7M44UTC |
| Merk | Ortustech |
| Maat | 7.0 |
| Sollicitatie | Industrial Outdoor H |
| Oplossing | 800×480 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 900:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | 7S2P |
| Koppel | LVDS |
| fabrikant | Ortustech |
| modelnaam | COM70H7M44UTC |
| scherm grootte | 7.0 inch |
| scherm type | LCM , a-Si TFT-LCD |
| pixel nummer | 800(RGB)×480 (WVGA) 133PPI |
| regeling | RGB Vertical Stripe |

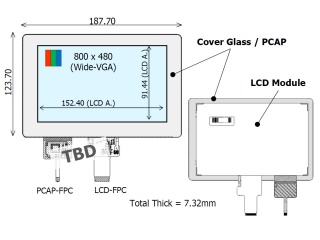

| actief gebied (mm) | 152.4 × 91.44 (H×V) |
| overzicht (mm) | 187.7 × 123.7 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Hard coating (3H) |
| luminantie | 900 cd/m² (Typ.) |
| contrast ratio | 900 : 1 (Typ.) (TM) |
| kijk hoek | 80/80/80/80 (Min.)(CR≥10) |
| antwoord | 50 (Typ.)(Tr+Tf) ms |
| goed zicht op | Symmetry |
| werk modus | VA, Normally Black, Transflective |
| kleuren diepte | 262K/16.7M 50% NTSC |
| tegenlicht | 7S2P WLED , 50K hours , No Driver |
| massa | TBD |
| gebruikt voor | Industrial Outdoor High Brightness |
| vernieuwingsfrequentie | 60Hz |
| touch screen | PCAP |
| signaal type | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
