| Onderdeel nummer | COM70H7M40ULC |
| Merk | Ortustech |
| Maat | 7.0 |
| Sollicitatie | Industrial Outdoor H |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 700:13:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | 7S2P |
| Koppel | |
| paneel merk | Ortustech |
| paneel grootte | 7.0" |
| oplossing | 800(RGB)×480, WVGA, 133PPI |

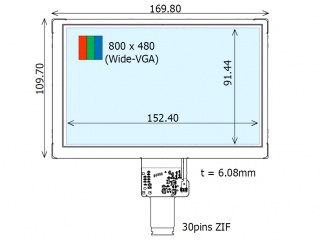

| weergavegebied | 152.4(W)×91.44(H) mm |
| omtrek grootte | 169.8(W)×109.7(H) ×6.11(D) mm |
| helderheid | 800 cd/m² (Typ.) |
| kijk hoek | 80/80/80/80 (Min.)(CR≥10) |
| beste zicht op | Symmetry |
| kleuren weergeven | 262K/16.7M 50% NTSC |
| frequentie | 60Hz |
| gewicht | TBD |
| paneelmodel | COM70H7M40ULC |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| oppervlak | Hard coating (3H) |
| contrast ratio | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| weergavemodus | VA, Normally Black, Transflective |
| reactietijd | 50 (Typ.)(Tr+Td) |
| soort lamp | 7S2P WLED , 50K hours , Without Driver |
| touch screen | Without |
| sollicitatie | Industrial Outdoor High Brightness Automotive Display |
