| Onderdeel nummer | COM35H3P58ULC |
| Merk | Ortustech |
| Maat | 3.5 |
| Sollicitatie | Handheld & PDA |
| Oplossing | 320×240 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 700:12:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | Parallel |
| merk | Ortustech |
| model | COM35H3P58ULC |
| diagonale maat | 3.5 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 320(RGB)×240 [QVGA] 115PPI |
| configuratie | RGB Vertical Stripe |

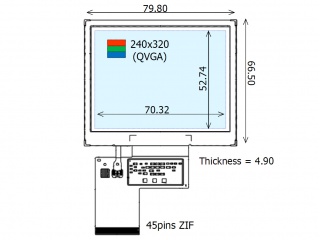

| actief gebied | 70.32(H)×52.74(V) mm |
| omtrek afm. | 79.8(H)×66.5(V) ×5.1(D) mm |
| bezel gebied | - |
| behandeling | Hard coating (2H) |
| luminantie | 600 cd/m² (Typ.) |
| contrast ratio | 700:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| richting bekijken | Symmetry |
| reactietijd | 60/40 (Max.)(Tr/Td) |
| kijk hoek | 80/80/80/80 (Min.)(CR≥10) |
| bedrijfsmodus | VA, Normally Black, Transflective |
| ondersteunende kleur | 16.7M 50% NTSC |
| lichtbron | WLED [3S2P] , 50K hours , W/O Driver |
| gewicht | TBD |
| ontworpen voor | Handheld & PDA |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| interface-type | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
