| Onderdeel nummer | COM104T9M15ERS |
| Merk | Ortustech |
| Maat | 10.4 |
| Sollicitatie | Industrial |
| Oplossing | 800×600 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | WLED |
| Koppel | |
| paneel merk | Ortustech |
| paneel grootte | 10.4" |
| oplossing | 800(RGB)×600, SVGA, 96PPI |

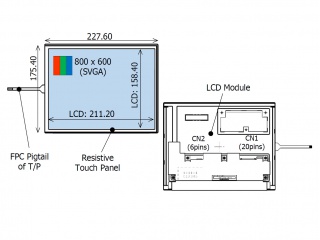

| weergavegebied | 211.2(W)×158.4(H) mm |
| omtrek grootte | 227.6(W)×175.4(H) mm |
| helderheid | 560 cd/m² (Min.) |
| kijk hoek | 85/85/85/85 (Min.)(CR≥10) |
| beste zicht op | Symmetry |
| kleuren weergeven | 262K/16.7M 50% NTSC |
| frequentie | 60Hz |
| gewicht | - |
| paneelmodel | COM104T9M15ERS |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| oppervlak | - |
| contrast ratio | 1000:1 (Typ.) (TM) |
| weergavemodus | FFS, Normally Black, Transmissive |
| reactietijd | 40 (Max.)(Tr+Td) |
| soort lamp | WLED , 70K hours , With LED Driver |
| touch screen | 4-wire Resistive Touch |
| sollicitatie | Industrial |
