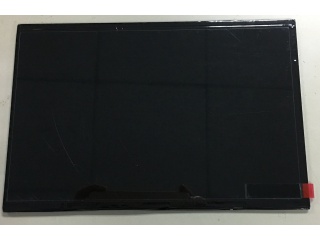

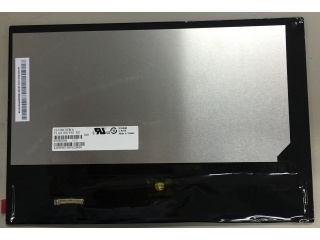

| Onderdeel nummer | CLAA101FP0J XG |
| Merk | CPT |
| Maat | 10.1 |
| Sollicitatie | Industrial Outdoor H |
| Oplossing | 1920×1200 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 750:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | CPT |
| paneelmodel | CLAA101FP0J XG |
| paneel grootte | 10.1" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 1920(RGB)×1200, WUXGA, 225PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 216.576(W)×135.36(H) mm |
| omlijsting openen | - |
| omtrek grootte | 228.99(W)×154.4(H) ×5.5(D) mm |
| oppervlak | Antiglare, Hard coating |
| helderheid | 1200 cd/m² (Typ.) |
| contrast ratio | 750:1 (Typ.) (TM) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| weergavemodus | HFFS, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 30 (Typ.)(Tr+Td) |
| kleuren weergeven | 16.7M 50% NTSC |
| soort lamp | WLED , 15K hours , With LED Driver |
| frequentie | 60Hz |
| touch screen | Without |
| paneel gewicht | TBD |
| sollicitatie | Industrial Outdoor High Brightness |
| signaal interface | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -10 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²) |
