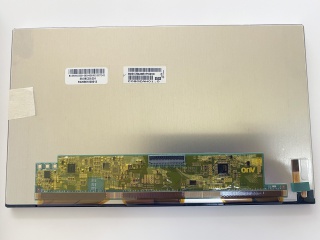

| Onderdeel nummer | C090EAN01.0 |
| Merk | AUO |
| Maat | 9.0 |
| Sollicitatie | Automotive Display |
| Oplossing | 1280×720 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| merk | AUO |
| model | C090EAN01.0 |
| diagonale maat | 9.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1280(RGB)×720 [WXGA] 163PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 198.72(H)×111.78(V) mm |
| omtrek afm. | - |
| luminantie | - |
| contrast ratio | 1000:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 15/15 (Max.)(Tr/Td) |
| kijk hoek | 80/80/80/80 (Typ.)(CR≥10) |
| bedrijfsmodus | AHVA, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 70% NTSC |
| lichtbron | WLED |
| gewicht | - |
| ontworpen voor | Automotive Display |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| interface-type | LVDS (1 ch, 8-bit) |
| omgeving | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
